AMD / MOTHERBOARDS

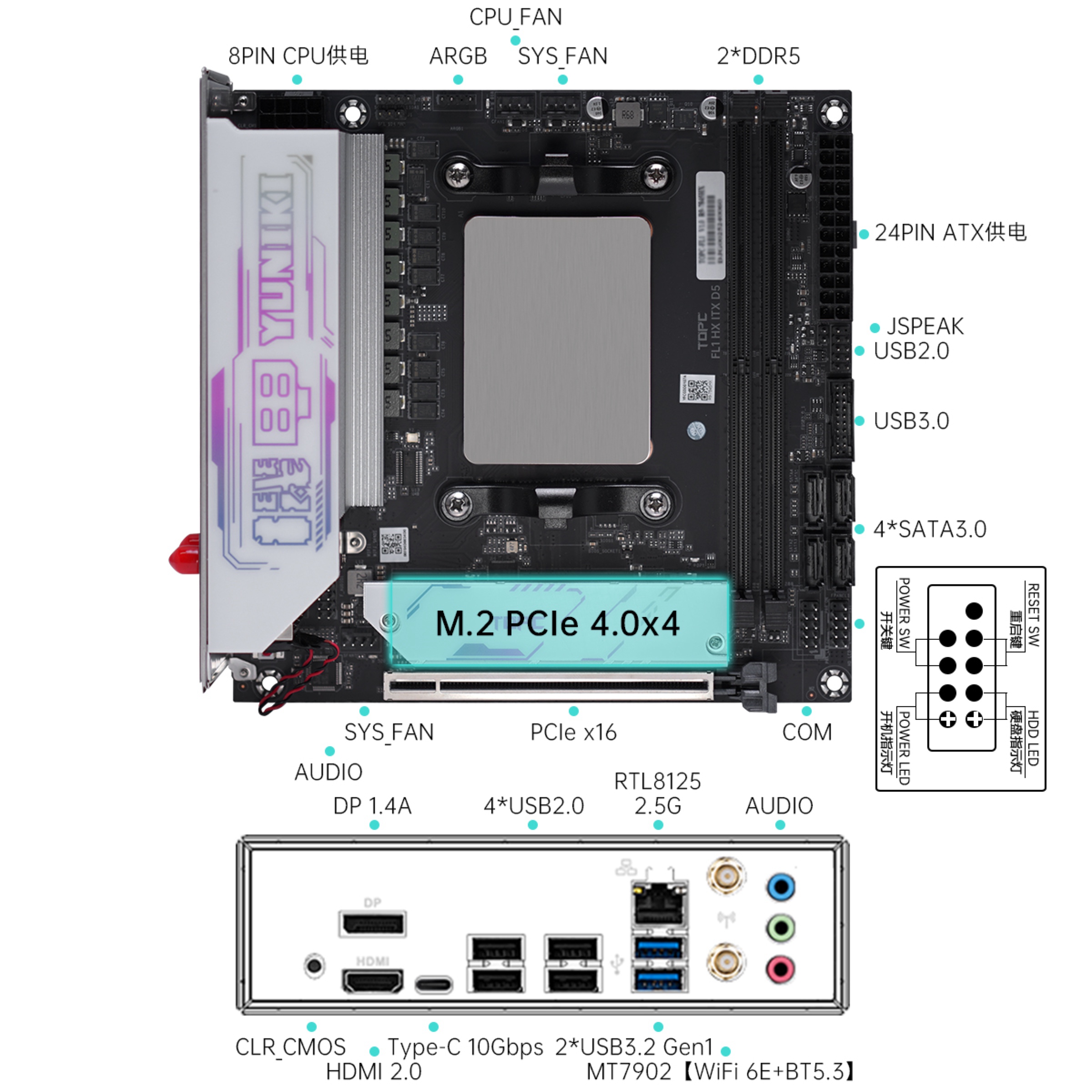

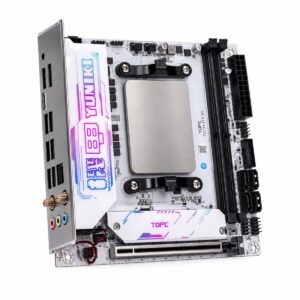

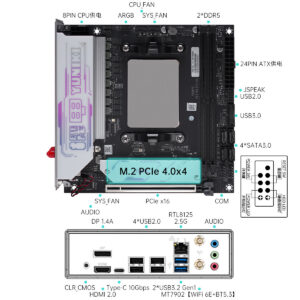

TOPC AMD Ryzen 7000HX DDR5 M-iTX Motherboard
$409.00
A compact AMD HX motherboard offered with 7945HX or 7745HX, two DDR5 DIMM slots and NVMe/SATA expansion.
In stock · ships in 1–2 business days
| Processor | AMD Ryzen 9 7945HX / Ryzen 7 7745HX |
|---|---|
| Cores / threads | 7945HX: 16 cores / 32 threads; 7745HX: 8 cores / 16 threads |
| Memory | 2 DDR5 DIMM slots |
| Storage interfaces | 2 M.2 NVMe SSD slots + 4 SATA connectors |
| Wired network | 2.5GbE |
| Display / high-speed ports | HDMI + DisplayPort + USB-C display output |
| Expansion | PCIe graphics expansion slot |
| Dimensions / form factor | 170 × 170 mm (Mini-ITX) |
| Planned sets | 7945HX / DDR5 ITX motherboard; 7745HX / DDR5 ITX motherboard |
| Price and availability | See the selected configuration for its price and availability. Unconfirmed configurations cannot be ordered. |
0.0 / 50 customer reviews
There are no customer reviews yet.
Purchased this product? Confirm receipt in My orders, then choose Review product.
Which processor does this model use?
AMD Ryzen 9 7945HX / Ryzen 7 7745HX. 7945HX: 16 cores / 32 threads; 7745HX: 8 cores / 16 threads. Choose the CPU version shown in the configuration label.
What memory does it use, and can I replace it?
This board uses two DDR5 desktop DIMM slots. Memory is separate from the onboard CPU option. DDR4 and SO-DIMM modules do not fit these slots.
What storage can I install?
2 M.2 NVMe SSD slots + 4 SATA connectors. Check the SSD interface and physical size before installation. A slot count describes expansion capacity, not the number of drives supplied.
What wired network and display connections are available?
2.5GbE. HDMI + DisplayPort + USB-C display output. Match the cable, display and network equipment to the selected connection.
Which configurations are listed?
7945HX / DDR5 ITX motherboard; 7745HX / DDR5 ITX motherboard. See the selected configuration for its price and availability; unconfirmed configurations cannot be ordered. Configuration names do not imply an operating-system licence or unlisted accessories.
Do both CPU options have the same core count?
No. The 7945HX has 16 cores and 32 threads; the 7745HX has 8 cores and 16 threads. Select the processor option before comparing CPU performance.
