INTEL / MINI PC

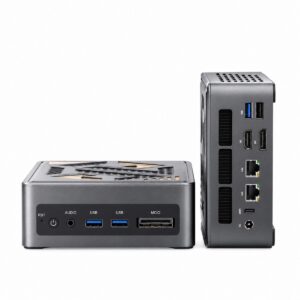

TOPC Ti1 intel Ultra 9 285H Mini PC — 32GB LPDDR5
Original price was: $1,279.00.$935.00Current price is: $935.00.
An Intel Core Ultra desktop with fixed 32GB LPDDR5, dual NVMe storage, dual 2.5GbE and MCIO expansion.
In stock · ships in 1–2 business days
| Processor | Intel Core Ultra 9 285H |
|---|---|
| Cores / threads | 16 cores / 16 threads |
| Integrated graphics | Intel Arc 140T |
| Memory | 32GB onboard LPDDR5; not user-replaceable |

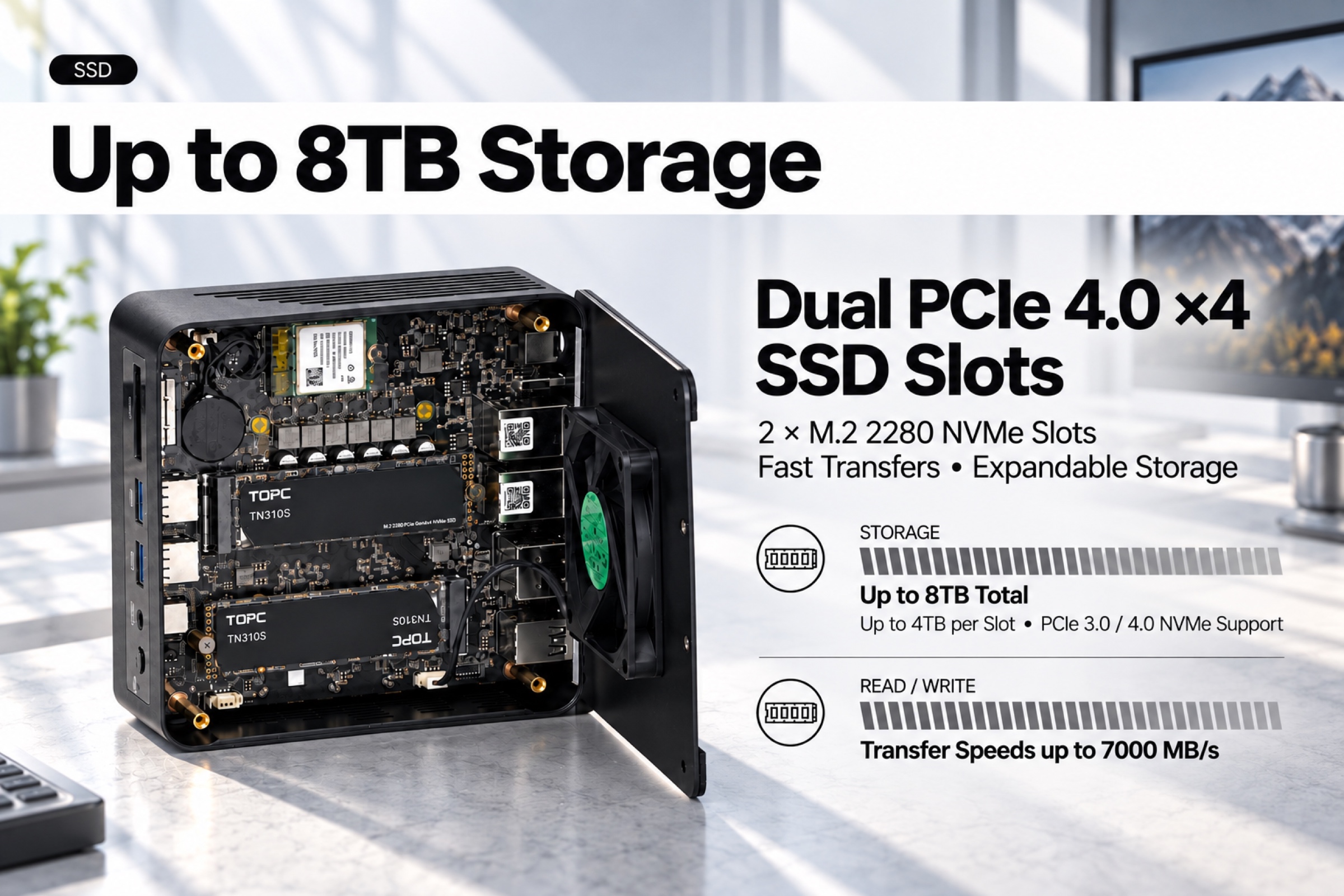

| Storage interfaces | 2 M.2 2280 PCIe 4.0 NVMe SSD slots |
| Wired network | 2 × 2.5GbE ports |

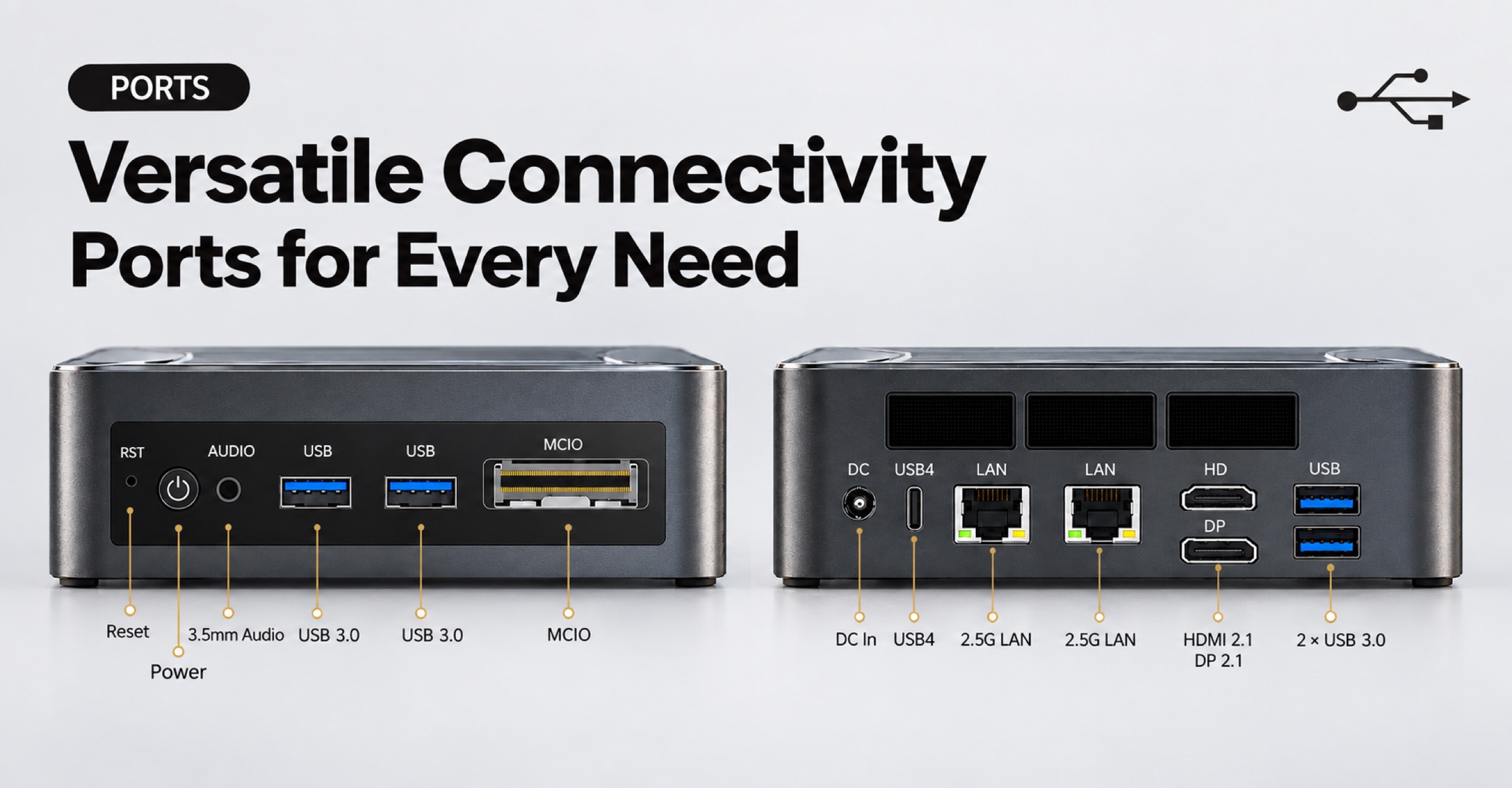

| Display / high-speed ports | HDMI + DisplayPort + USB4 USB-C |
| Expansion | MCIO expansion connector |
| Dimensions / form factor | 132 × 132 × 50.5 mm |
| Planned sets | Ultra 9 285H / LPDDR5 32GB / No SSD; Ultra 9 285H / LPDDR5 32GB / 1TB SSD |
| Price and availability | See the selected configuration for its price and availability. Unconfirmed configurations cannot be ordered. |
0.0 / 50 customer reviews
There are no customer reviews yet.
Purchased this product? Confirm receipt in My orders, then choose Review product.
Which processor does this model use?
Intel Core Ultra 9 285H. 16 cores / 16 threads. Integrated graphics: Intel Arc 140T.
What memory does it use, and can I replace it?
The 32GB LPDDR5 memory is soldered onboard. It is not expandable with SO-DIMMs. No SSD and 1TB sets both include the same 32GB memory.
What storage can I install?
2 M.2 2280 PCIe 4.0 NVMe SSD slots. Check the SSD interface and physical size before installation. A slot count describes expansion capacity, not the number of drives supplied.
What wired network and display connections are available?
2 × 2.5GbE ports. HDMI + DisplayPort + USB4 USB-C. Match the cable, display and network equipment to the selected connection.
Which configurations are listed?
Ultra 9 285H / LPDDR5 32GB / No SSD; Ultra 9 285H / LPDDR5 32GB / 1TB SSD. See the selected configuration for its price and availability; unconfirmed configurations cannot be ordered. Configuration names do not imply an operating-system licence or unlisted accessories.
Is MCIO the same connector as OCuLink?
No. This Ti1 is the MCIO model. An external device needs a matching MCIO cable, adapter and power supply; confirm compatibility for the complete setup.
