INTEL / MOTHERBOARDS

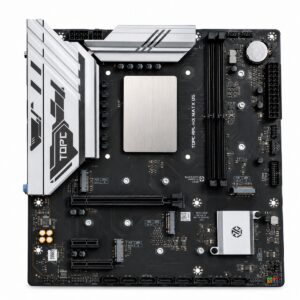

TOPC Intel HX DDR5 Micro-ATX Motherboard
$393.00

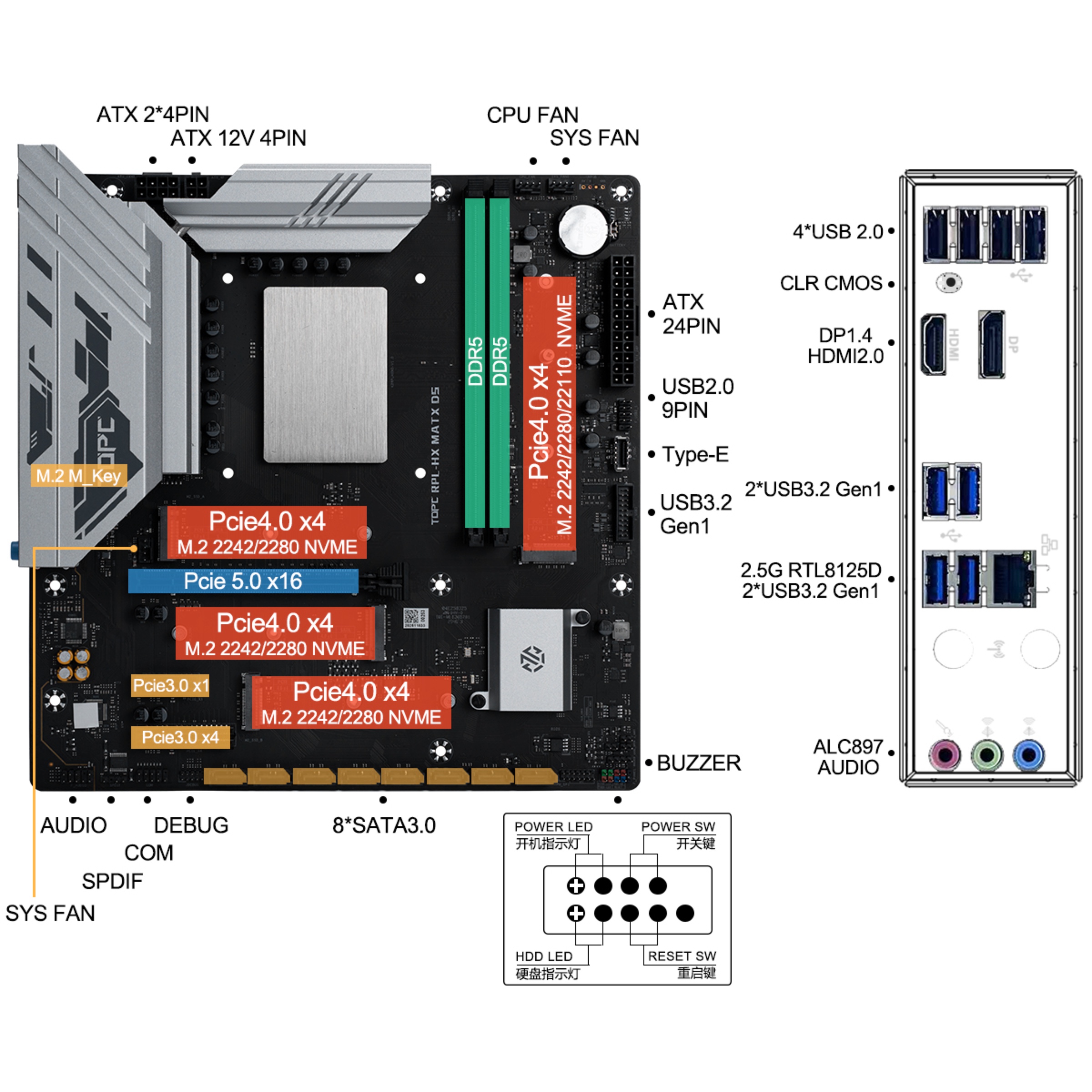

An Intel HX Micro-ATX board with DDR5 DIMM slots, four NVMe SSD positions and eight SATA connectors.
In stock · ships in 1–2 business days
| Processor | Intel Core i9-13980HX / Core i9-14900HX |
|---|---|
| Memory | 2 DDR5 DIMM slots |
| Storage interfaces | 4 M.2 NVMe SSD slots + 8 SATA connectors |
| Wired network | 2.5GbE |
| Display / high-speed ports | HDMI + DisplayPort |
| Expansion | PCIe graphics expansion slot |
| Dimensions / form factor | 245 × 245 mm (Micro-ATX) |
| Planned sets | 13980HX / DDR5 M-ATX motherboard; 14900HX / DDR5 M-ATX motherboard |
| Price and availability | See the selected configuration for its price and availability. Unconfirmed configurations cannot be ordered. |
0.0 / 50 customer reviews
There are no customer reviews yet.
Purchased this product? Confirm receipt in My orders, then choose Review product.
Which processor does this model use?
Intel Core i9-13980HX / Core i9-14900HX. Choose the CPU version shown in the configuration label.
What memory does it use, and can I replace it?
This board uses two DDR5 desktop DIMM slots. DDR4 memory is not compatible. Supported speeds depend on the CPU, firmware and memory kit; an advertised overclock is not a guaranteed setting.
What storage can I install?
4 M.2 NVMe SSD slots + 8 SATA connectors. Check the SSD interface and physical size before installation. A slot count describes expansion capacity, not the number of drives supplied.
What wired network and display connections are available?
2.5GbE. HDMI + DisplayPort. Match the cable, display and network equipment to the selected connection.
Which configurations are listed?
13980HX / DDR5 M-ATX motherboard; 14900HX / DDR5 M-ATX motherboard. See the selected configuration for its price and availability; unconfirmed configurations cannot be ordered. Configuration names do not imply an operating-system licence or unlisted accessories.
Does the motherboard SKU include RAM, an SSD or a case?
No RAM, SSD or chassis is specified in the motherboard SKU. It identifies the onboard CPU and DDR5 board version. Choose compatible components separately.
